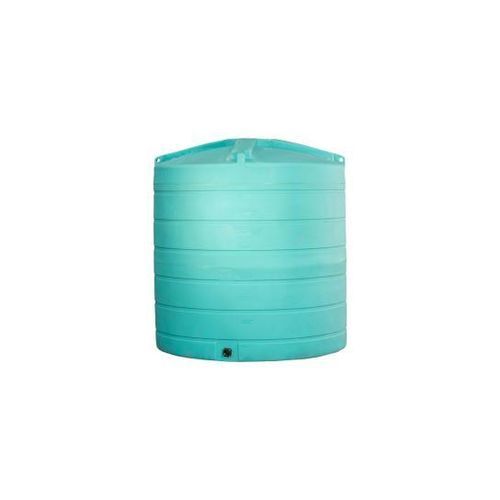

Liquid fertilizer tank DC10200LVT

overheadverticalpolyethylene

Overview DURACUVE 10200 V
Vertical single-wall storage tank for liquid fertilizer and similar high-density liquids. Nominal capacity 10,000 L.

Application Designed for storage of nitrogenous and other liquid agricultural products up to a maximum density of 1.4 kg/L. Manufactured in UV-treated polyethylene for outdoor use.

Main features

• UV-treated high-definition surface for extended service life and unchanged stored product quality
• Rigid material resistant to impacts and pests
• Accepts high-density solutions up to 1.4 kg/dm³ (e.g. liquid fertilizer, molasses, brine)
• Vented quick-close lid ensuring controlled ventilation
• Drain diameter DN80 (stainless steel) with DN50 reducer and DN50 valve (PP)
• Optional float level sensor
• Easy cleaning via manhole; smooth interior surface
• Handling rings enable movement and empty installation without crane
• Ribbed walls for increased rigidity
• Factory-fitted bulkhead to ensure optimal sealing
• Manufactured in France
• Warranty: tank 10 years, parts 1 year (subject to terms and conditions)

Product benefits

• Direct level visualization
• Handling rings designed to ease lifting and securing
• Base rings and protective mouldings ensuring lid tightness
• Wide capacity range available (from 4,900 to 25,000 litres)
• Small footprint (diameters between 1.9 and 3.0 m) to reduce civil works costs
• Lightweight with good weight/volume ratio for easier installation
• Monobloc rotomoulding with reinforced corners

Technical specifications

• Height (m): 2.700
• Weight (kg): 280
• Diameter (m): 2.400
• Key: A
• Capacity (L): 10000
• Manhole Ø: 455 mm
• Material: UV-treated polyethylene
• Pre-mounted tank flange: DN50 with DN50 ball valve
• Max. liquid density: 1.4 kg/L
• Lifting lugs: 4 top lifting points
