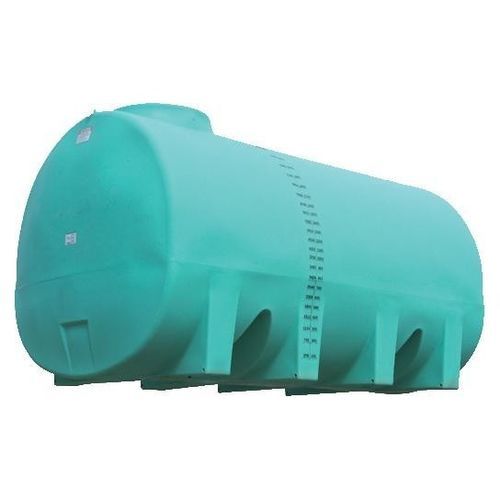

Liquid fertilizer tank DC8000VL

horizontalpolyethyleneUV-resistant

Description
Horizontal transport tank designed for liquid fertilizer and other high-density liquids (up to 1.4 kg/dm3). Anti-slosh features reduce tractor wear; tank body in semi-opaque, UV-treated polyethylene for extended service life. Supplied with manhole, semi-automatic vented lid and DN50 flange/valve (valve supplied unassembled). Carry and install empty without crane using lifting lugs.

Key points

• Capacity: 8000 litres
• Material: semi-opaque polyethylene with reinforced UV protection (UV15)
• Compatible with liquids up to 1.4 kg/dm3 (liquid fertilizer, molasses, brine, etc.)
• Provided with assembled tank passthrough and DN50 polypropylene valve (valve supplied unassembled)
• Semi-automatic ventilated lid and manhole Ø462 mm for internal cleaning
• Lifting lugs for crane-free transport when empty
• Readable level graduation in bright light (exceptions for some larger models)

Important remarks
For volumes ≥ 8000 L, maximum allowed driving speed is 25 km/h; at higher speeds installation of BallBaffles is mandatory for warranty coverage. Respect usage recommendations depending on the liquid transported. Also available in a full-drain design for the same nominal volume.

Warranty & manufacturing
Tank: 5-year warranty; spare parts: 1-year warranty. Manufactured in France.

Characteristics / technical specifications

• Height (m): 1.800
• Width (m): 1.820
• Depth (m): 3.230
• Weight (kg): 330.000
• Key: A
• Capacity (L): 8000
• Valve: Polypropylene DN50 (supplied unassembled)
• Manhole: Ø462 mm
• Passthrough: assembled
• Material: high-quality semi-opaque polyethylene, reinforced UV protection (UV15)
• Maximum supported liquid density: up to 1.4 kg/dm3
• Cleaning: integrated manhole for access
• Anti-slosh system: available (recommended/mandatory above certain speeds for ≥8000 L)
