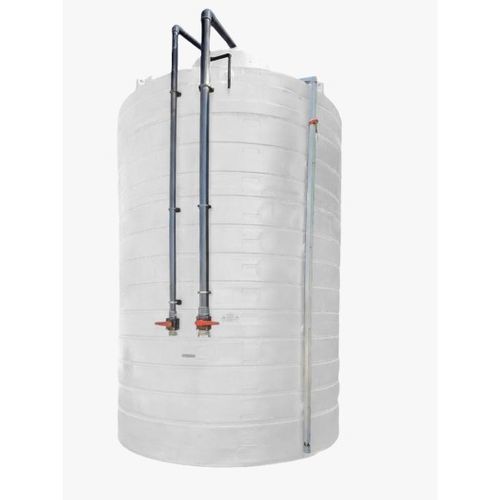

Liquid fertilizer tank DPR25000ECO-SP

verticalpolyethylenedouble-walled

Overview
The safest solution for your farm. The 25,000 L double-wall liquid fertilizer tank adapts easily to the evolution of your operation. Movable empty with a standard telehandler, it combines the flexibility and chemical resistance of rotational-moulded polyethylene with four lifting lugs and transport-friendly dimensions.

Welded system ensures perfect watertightness and maximum strength.

Total safety thanks to the inner wall fully secured between the two tanks.

The 25,000 L ECO - Basique fertilizer tank is less exposed to puncture risks thanks to its rigid material compared with flexible alternatives.

Improve filling ergonomics and responsiveness by accessing the valve at operator height.

Watertight retention insensitive to external elements (water, frost, etc.).

Equipment and uses

• Valve 3'' and valve 2''
• Accepts a wide variety of solutions: liquid fertilizers, molasses, brine
• Allows product densities up to 14 kg/dm³
• Configuration: ECO - Basique (pump optional)

Key features

• Mechanical gauge
• Leak detection: mechanical detector
• Suction: 2'' rigid PVC hose
• Filling: 3'' rigid PVC hose
• Warranty: 5 years

Technical sheet
Height (m) : 5100
Diameter (m) : 3000
Capacity (L) : 25000

Technical specifications

• Product reference: DPR25000ECO-SP
• Model: CUVE DOUBLE PAROI- ECO - BASIQUE
• Capacity: 25 000 L
• Height: 5,100 m
• Diameter: 3,000 m
• Material: polyethylene (rotomoulded)
• Double wall with secured inner wall
• Welded system for watertightness and strength
• 4 lifting lugs, sized for transport
• Movable empty with a telehandler
• Valves: 3'' and 2''
• Suction: 2'' rigid PVC hose
• Filling: 3'' rigid PVC hose
• Mechanical gauge
• Mechanical leak detector
• Accepts product density up to 14 kg/dm³
• Color: White
• Manufacturer warranty: 5 years
