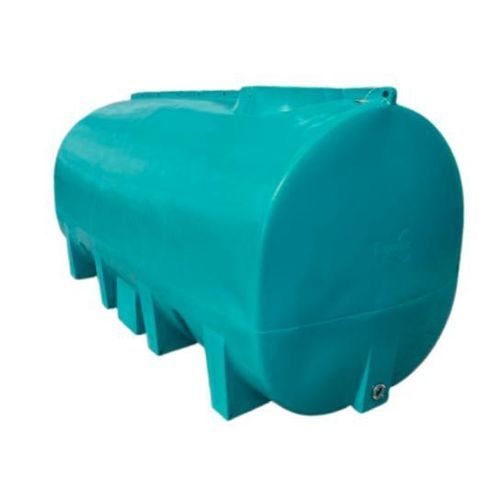

Liquid fertilizer tank DC13001VL

horizontalUV-resistanttransport

Overview
DURACUVE 13000 - fertilizer transport tank 13,000 litres. Operate safely: stability ensured by a particularly low centre of gravity and reduced height. Fitted with a 3-inch stainless tank feed-through and an Ø80 stainless valve.

Warranty
Tank guaranteed 5 years and parts guaranteed 1 year.

Key features

• Transport with confidence thanks to a range of wide, low-profile tanks that optimise safety during transit.
• Handling rings designed for strap passage to facilitate handling of the empty tank.
• Versatile: accepts various solutions (liquid fertilizers, molasses, brine, etc.) up to a density of 1.4 kg/dm3.
• Compact footprint allowing adaptation to all types of carriers (tipper body or flatbed).
• Rear stop and robust axle mounting system (mounting axles optional) for maximum stability.
• Equipped with a 3-inch stainless tank feed-through and an Ø80 stainless valve for durability and ease of use.
• UV15 protection: enhanced UV and impact resistance (approximately twice the resistance of standard UV8 polyethylenes).
• Manhole for autonomous internal cleaning of the tank.
• Lid with protective moulding and stiffened base for improved sealing and longevity.
• Anti-surge design to reduce tractor wear by breaking the liquid wave.
• Lid and drain system entirely in stainless steel for durability and ease of cleaning.
• Reinforced dome design for better resistance to internal pressures and external stresses.
• Warning: speed limited to 25 km/h. Above this, installation of Ball Baffles is mandatory for tank volumes ≥ 8000 L. Use of a tank ≥ 8000 L above 25 km/h without Ball Baffles will void the warranty.

Technical sheet (excerpt)
Height (m) : 2.120
Diameter (m) : 2.000
Capacity (L) : 13000

Technical specifications

• Product reference: DC13001VL
• Commercial name: DURACUVE 13000
• Capacity: 13 000 L
• Height: 2,120 m
• Diameter: 2,000 m
• Material / equipment: lid and drain in stainless steel; 3-inch stainless tank feed-through; Ø80 stainless valve
• UV protection: UV15 (reinforced resistance compared with UV8 standard)
• Liquid compatibility: liquid fertilizers, molasses, brine, etc. up to 1.4 Kg/dm3
• Warranty: tank 5 years, parts 1 year
• Safe use condition: speed limited to 25 km/h without Ball Baffles for volumes ≥ 8000 L
